CFPS-Plate™ CELLAMES Electrode Cell Chip
Features- Each of the 16 channels has a single transparent circular recording electrode with a radius of 250 μm and including reference electrode patterned on the slide glass (26 mm x 100 mm).
- The transparent circular sensing electrodes can be separated into1, 2, 4, or 16 wells of polystyrene chamber
- The electrode patterned on ITO glass substrate.
- Convenient for optical microscope examination (Transparency ITO electrode materials)
- Non-destructive electrical analysis of cardiomyocyte cells
- Field potential measurement
- Cardiomyocyte cells cytotoxicity test
| Model Name |
Electrode Material |
Electrode Transparency |
Growth Area / Well(cm2) |
Working Volume / Well(mL) |
Number of Well |
Electrode Type |
|---|---|---|---|---|---|---|
| CFPS- ITO-16W2E |
ITO(Indium Tin Oxide) |
Transparent | 0.33 | 0.2 ~ 0.3 | 16 | Circular Disk Type (1 recording, 1 reference) |
| Model Name |
Type | Simulator | Signal Type | Usage |
|---|---|---|---|---|
| CFPS-G16 | Model Cell | LPF for CFPS-32 | Real Signal of Cardiomyocyte | QC and Calibration |
| CFPS-32-NR-Generator | Model Cell | LPF for CFPS-32-NR | Real Signal of Neuron Cell | QC and Calibration |
CFPS-ITO-16W2E
CFPS-G16
CFPS-32-NR-Generator

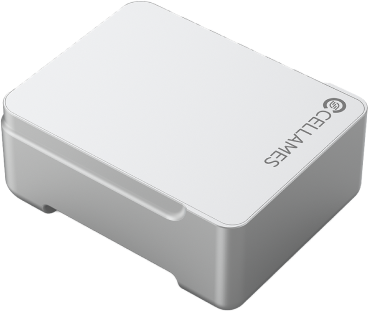

CFPS-32™ Field Potential Monitoring System
Overview- The CELLAMES CFPS(Cell Field Potential Monitoring System) is developed for real-time and non-destructive monitoring of cardiomyocyte electrical activities.
- It provides electrical cardiac cell characteristics related to cardiac cell population on the sensing area of each channel.
- Real-time and Non-destructive Monitoring
- Monitoring real-time neuronal (myocardial) electrical signals
- nV to uV voltage sensing
- 12.5K Sample/s Sampling
- Measurement channel and time interval selection function
- Minimize Power Noise
- User-friendly GUI and data analytics software
- 32 Channel Measurement Station for Two CFPS-Plates
- Laptop PC
- S/W for Control, Data Acquisition, and Display
- Consumable CFPS-Plates
- User-Friendly Access using Type C – Cable
CFPS-32™ Software

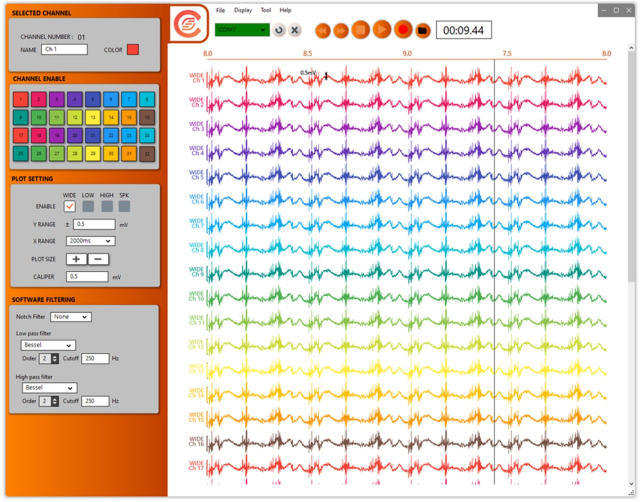

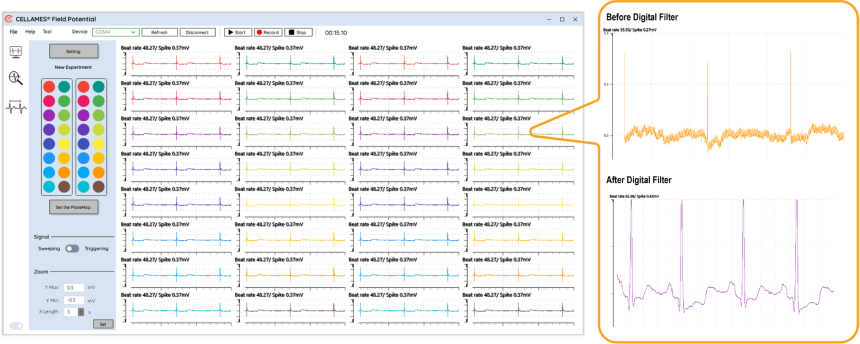

The CFPS-32 SW analyzes and displays the data measured by the Real-timefield potential measurement for cardiomyocyte Monitoring System CFPS-32 and presents it in user-friendly graphs for viewing.
- Easily monitoring and analyze the field potential of cardiomyocyte.
- Accurate waveform display with fast sampling rate and filtering.

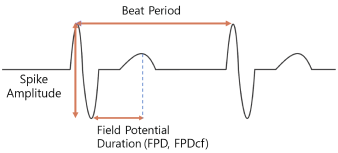

- Get important indicators of cardiomyocyte activity. Beat Period, Spike Amplitude, Field Potential Duration.

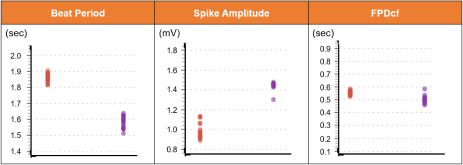

- Beat Period, Spike Amplitude, and FPD(FPDcf)

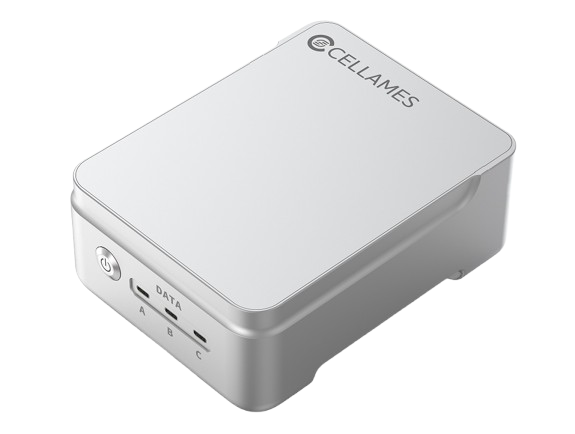

CFPS-32-NR™ Field Potential Monitoring System
Overview- The Local Field Potential Monitoring System CFPS-32-NR, developed with Cellames’s own technology,
enables non-destructive and real-time monitoring of change in electrical characteristic through the detection
of electrophysiology signals occurring in neuron cells or brain tissue. - The CFPS-32-NR is small and simple to be used within the general laboratory and cell incubator.
- Monitoring real-time neuronal (myocardial) electrical signals
- nV to uV voltage sensing
- 12.5K Sample/s Sampling
- 32 channels
- Minimize Power Noise
- User-friendly GUI and data analytics software
- Measurement channel and time interval selection function
- 32 Channel Measurement Station
- Laptop PC
- S/W for Control, Data Acquisition, and Display
- 3 Ports of User-Friendly Access using Type C – Cable

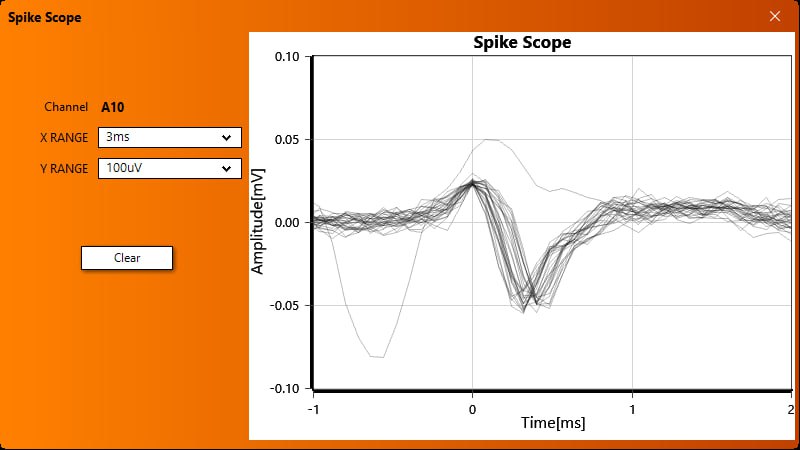

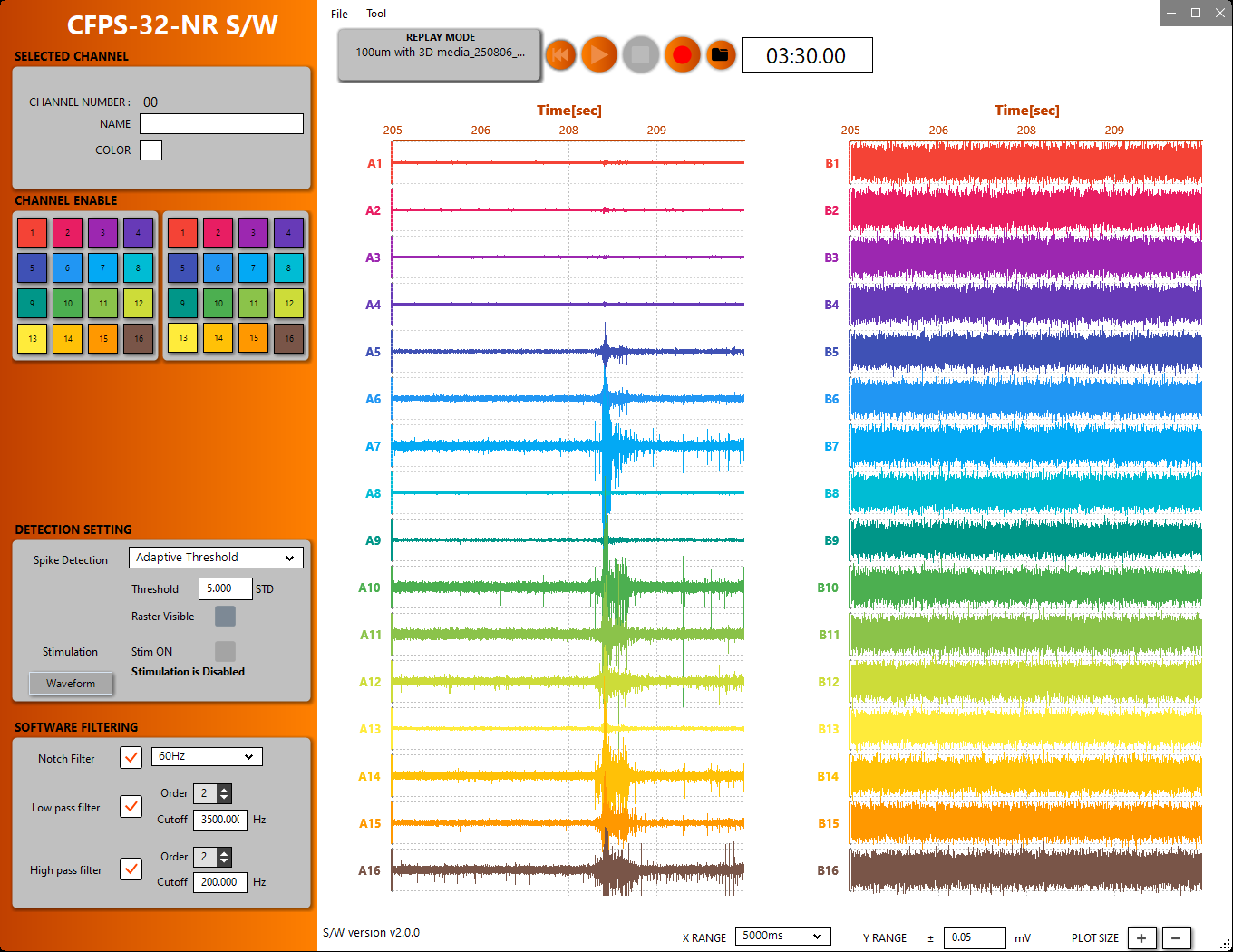

CFPS-32-NR™ Software
- User-friendly and intuitive GUI.
- Easily monitoring and analyze the field potential.
- Accurate waveform display with fast sampling rate and filtering.
- Get important indicators of brain tissue activity.
